Contrast media volume is significantly related to patient lung volume during CT pulmonary angiography when employing a patient-specific contrast protocol

Abstract

Aim: The purpose of this study is to investigate the relationship between contrast media volume and patient lung volume when employing a patient-specific contrast media formula during pulmonary computed tomography angiography (CTA).

Materials and methods: IRB approved this retrospective study. CTA of the pulmonary arteries was performed on 200 patients with suspected pulmonary embolism (PE). The contrast media volume (CMV) was calculted by employing a patient-specific contrast formula. Lung volume was quantified employing semi-automated lung software that calculated lung volumes (intellispace -Philips). The mean cross-sectional opacification profile of central and peripheral pulmonary arteries and veins were measured for each patient and arteriovenous contrast ratio (AVCR) calculated for each lung segment.  Mean body mass index (BMI) and lung volume were quantified. Receiver operating (ROC) and visual grading characteristics (VGC) measured reader confidence in emboli detection and image quality respectively. Inter and intra-observer variations were investigated employing Cohen’s kappa methodology.

Results: Results showed that the mean pulmonary arterial opacification of the main pulmonary circulation (343.88±73HU), right lung; upper (316.51±23HU), middle (312.5±39HU) and lower (315.23±65HU) lobes and left; upper (318.76±83HU), and lower (321.91±12HU) lobes. The mean venous opacification of all pulmonary veins was below 182±72HU. AVCR was observed at all anatomic locations (p<0.0002) where this ratio was calculated. Moreover, larger volumes of contrast significantly correlated with larger lung volumes (r=0.89, p<0.03) and radiation dose (p<0.03). VGC and ROC analysis demonstrated increased area under the curve: 0.831 and 0.99 respectively (p<0.02). Inter-observer variation was observed as excellent (κ = 0.71).

Conclusion: We conclude that increased CMV is significantly correlated to increased patient lung volume and radiation dose when employing a patient-specific contrast formula. The effects patient habitus is highlighted.

Introduction

Although the gold standard in pulmonary embolism (PE) diagnosis is still angiopulmonography, computed tomography pulmonary angiography (CTPA) protocols have witnessed a surge in thrombus detection at specificity and sensitivity approaching 100% with additional benefits of non-invasiveness and accessibility.[1] Since this efficacy is largely dependent on effective contrast media volume (CMV) administration, studies have been extensively conducted on contrast administration protocols.[2-8] These studies have found that visualization of the pulmonary vasculature is significantly improved when using a simple patient-specific formula,[1,7,9] which also allows CMV to be reduced along with the potential risk of contrast-induced nephropathy.[1]

Studies performed on adult patients with normal pulmonary functioning demonstrated an air/tissue relationship approaching a 7:3 ratio of air to lung parenchyma;[10] other studies noticed that an increase in total lung volume is concomitant with an increase in the volume of pulmonary blood and pulmonary extravascular water.[11] To the best of our knowledge, there have been no studies to date that compares CMV with patient lung volume employing a reduced patient-specific formula. The aim of the study is to investigate the relationship between CMV and patient lung volume when employing a patient-specific contrast media formula during CTPA. Our results could be used as a foundation for further research on lung volume-specific CTPA protocols.

Materials and Methods

Study population

The institutional review board (IRB) approved this study and written informed consent was waived since all studies were clinically indicated and patient data were evaluated retrospectively. Two hundred consecutive patients with high clinical suspicion of acute PE were examined over a 6-month period between August 2018 and January 2019. The indication for CTPA was suspected PE based on clinical information (chest pain, dyspnea, hypoxia, calf pain or known deep vein thrombosis, and risk factors for PE) and/or laboratory information (positive d-dimer >0.8 mg/L). All patients with a positive PE in this study received anticoagulation therapy and due to the nature of the suspected condition, all patients were scanned. Inclusion criteria were patients with suspected PE as per the criteria mentioned above, who underwent CTPA. Patients with no suspected PE or patient with PE who did not undergo CTPA were excluded from the study. There were no patients in the study that had renal insufficiency and/or contraindications to iodinated contrast media. The diagnosis and treatment were in adherence to the American College of Cardiology (ACC) guidelines for the diagnosis and management of PE.

Ethical approval

All procedures performed in studies involving human participants were in accordance with the ethical standards of the American University of Beirut’s IRB and with the 1964 Helsinki declaration and its later amendments or comparable ethical standards. Informed consent was waived since all studies were clinically indicated; patient data contained no identifiable information and was evaluated retrospectively.

Image acquisition

CTPA was performed using a 256-channel computed tomography scanner (Philips Brilliance iCT, Philips Healthcare, The Netherlands). Patients were positioned supine with arms resting on the gantry above the head. Anterior-posterior scout was performed, with a scan range from the apices (2 cm above the 1^st rib) to the diaphragm (2 cm below the lowest costophrenic recess). Breath-hold, with a mouth open breathing technique, was employed to reduce hyperventilation and Valsalva. Scan range was from the lung apices to the costophrenic angles. CT scan parameters employed in each protocol were: Detector width of 256 × 0.625 mm, pitch of 0.981:1 ratio, rotation time of 0.27 s, 100 kVp, 140 mA, with x, y and z-axis modulation (DoseRight), craniocaudal scan direction, and model-based iterative reconstruction (IMR2).

Contrast media administration

Contrast bolus geometry

Vessel opacification for all cases was measured by placing a region of interest (ROI) over the main pulmonary trunk. A time attenuation curve in Hounsfield units (HU) was calculated and the desired peak opacification was recorded. The patient-specific protocol employed the test bolus technique[1] where the ROI was plotted inside the main pulmonary trunk with a small amount of contrast material (5 mL) injected at the same rate as the main bolus. This ROI assessed the time to peak (TTP) and determined the arteriovenous circulation time for pulmonary vasculature.[1,7,12]

Contrast media acquisition

Contrast and saline chaser were injected with an automated dual-barrel power injector (CT Emotion, Ullrich, Germany) through a 20G venous catheter in the right arm.[13,14] The patient-specific contrast formula employed iodinated contrast (Omnipaque 350 mgI/mL; General Electric, USA) intravenously injected at a flow rate of 4.5 mL/s. Contrast media volume was calculated according to an empirically derived formula:[15] CV = (ST+TTP-OVWP)×FR. Where ST is the scan time (s), TTP (s) is as described above, OVWP is the optimal venous washout phase (6 s), and FR is the flow rate (mL/s). ST differs for each patient based on the distance between the apices and diaphragm of the thorax. Patients were excluded if they were unable to have a right-sided injection site in the cubital fossa with a flow rate of 4.5 mL/s.

Radiation dose measurement

For each of the CT scans, an individual effective dose (E_ff [mSv]) was calculated from the dose-length products (DLP [mGy × cm]), which were recorded from the patient protocol. A normalized conversion factor (k [mSv/mGy × cm]) for the chest – 0.014 mSv/mGy × cm – was used to calculate the E_ff:[16] E_ff = DLP × k.[4]

Image assessment

Technical inclusion criteria ensuring correct scan range and anatomical inclusion of the origin, pathway, and termination of the pulmonary vasculature were applied to all cases by two expert radiologists (not included in the study proper). Quantitative measurements of all images were performed using a primary reporting workstation (IntelliSpace, Philips Healthcare, Netherlands) with a GSDF-calibrated 3 megapixel monitor. Illumination was adjusted at 25–32 lux,[17] with a calibrated photometer (Chroma meter CL-200).

Quantitative analysis

Opacification in HU was measured for all cases in the trans-axial images within the largest circular ROI that would fit within the lumen and exclude the vessel wall. The mean cross-sectional opacification profile of 8 central segments and 11 peripheral pulmonary arteries were measured. In cases where PE was identified, care was taken not to include the emboli within the measurements. Arterial and venous measurements took place at the heart, pulmonary trunk, segmental, and subsegmental pulmonary vasculature and each measurement were no <2 mm in diameter [Figure 1]. The location of the arteries and veins was as follows: Central pulmonary vasculature (trunk, right and left pulmonary arteries, and left superior and inferior pulmonary veins); pulmonary segments; right upper lobe (anterior and posterior), right middle lobe (lateral and medial), right lower lobe (anterior and posterior basal), left upper lobe (apicoposterior and inferior lingular), and left lower lobe (anteromedial basal and posterior basal); and superior vena cava (SVC).

Download figure
Enlarge figure

Figure 1. Anatomical location of measurements of the pulmonary vasculature

Adjacent to the arterial pathways, the venous measurements were performed in the same axial plane. Image contrast between arteries and veins was expressed as a ratio of HU values (artery/vein) at each anatomical level and denoted as the arteriovenous contrast ratio (AVCR).[18]

Lung volume parenchyma and airway volumes were measured by quantitative volumetric analysis [Figure 2] on the CTPA imaging sequence using the Philips IntelliSpace lung segmentation software (v6.0.3.12200, Best, The Netherlands).

Download figure
Enlarge figure

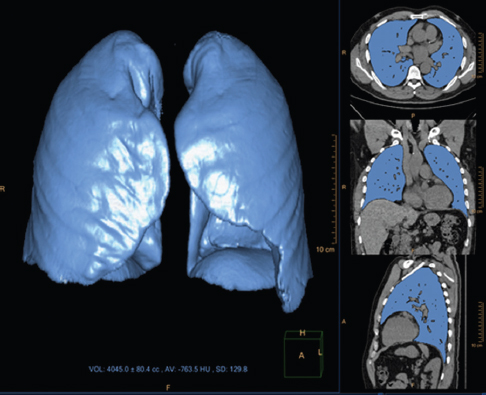

Figure 2. Lung volume analysis

Diagnostic efficacy

The multi-reader analysis consisted of two cardiothoracic radiologists who had been certified by the American Board of Radiology and The Royal College of Radiologists for a mean number of 8.9 years (minimum, 3 years; maximum, 18 years). All reviewers were specialists in cardiothoracic imaging and each observer was allowed to manipulate the window level of the images.

Receiver operating characteristic (ROC) analysis

ROC methodology was employed to illustrate radiologist confidence intervals to detect pathology. A score of 1–2 was assigned to each image, where 1 indicates positive for pathology detection and 2 indicates negative for pathology detection of PE. All cases were randomly allotted with the number of normal (n = 87) and abnormal (n = 113) cases. The abnormal cases demonstrated an array of vascular disease that was defined by two radiologists’ reports (based on complete patient series, previous and subsequent examinations, and clinical indications). All pathology was visible on the transaxial images and the prevalence of pathology was not revealed to the observers. Technical criteria ensuring correct scan range and anatomical inclusion were considered (not included in the study proper) to ensure that all images displayed an acceptable level of quality before they were included in the analysis.

Visual grading characteristics (VGC) analysis

The VGC method of Bath and Mansson[19] was used to illustrate viewer assessment of image quality based on the visibility of normal anatomy. Specifically, for this work, the presence of contrast media filling was recorded for a pulmonary arterial system using a five-point classification scale where score 1 indicated no contrast media filling within the pulmonary vasculature and 5 represented complete filling.

Inter- and intra-reader variability

The inter- and intra-observer agreements were calculated using Cohen κ analysis. A k value 0.60 to 1, 0.41 to 0.60, 0.21 to 0.40, and <0.20 was considered excellent, moderate, fair, and poor agreement, respectively.

Statistical analysis

Continuous variables were described with mean ± standard deviation (SD). The analysis of variance (ANOVA) was used to compare the means across the tertiles of contrast volume. The association between contrast volume and measured variables was evaluated through simple linear regression. Analyses were conducted using SPSS 22 for Windows (SPSS Inc., Chicago, IL). Results were considered statistically significant if P ≤ 0.05 with a 95% confidence interval and a power of 0.8. ROC and VGC were employed to measure the confidence intervals in pathology detection and image quality, respectively. Jackknife free-response assessment of diagnostic systems continues to gain acceptance in areas related to the detection, localization, and classification of one or more “abnormalities” within a subject.

Results

Patient demographics

There was no significant change in CMV with gender and age, however, CMV increased with increasing body weight (P < 0.004) and body mass index (BMI) (P < 0.01) [Table 1]. In addition, the effective radiation dose also increased from low CMVs (0–10 mL) to higher CMVs (60–70 mL) (P < 0.03) incrementally.

Table 1. Patient demographics

Data are mean ± standard deviation, P <0.05, statistically significant with ANOVA. BMI: Body mass index

Patient parameters	Contrast volume range (mL)
	0–10	10–20	20–30	30–40	40–50	50–60	60–70	P value
Male	0	3	9	63	15	8	1	>0.096
Female	2	3	5	39	29	20	3	>0.338
Total	2	6	14	102	44	28	4	>0.077
Age (years)*	51.23±11.23	64±19.83	67±18.34	42±12.24	48±19.67	55±42.28	59±23.22	>0.068
Height (cm)*	172.16±2.13	167±18.51	181±24.33	177± 48.73	182±13.11	173±26.41	175±9.77	>0.078
Weight (kg)*	51±9.12	52±13.81	58±33.18	73±16.81	75±12.93	81±22.67	82±13.46	<0.004
BMI (kg/m 2 )	25.32±8.22	24±6.67	25±3.89	26±4.38	25±9.22	27±4.54	27±9.91	<0.01
Scan time (s)	3.22±1.2	3.77±1.9	3.99 ±1.4	4.11±1.1	4.21±1.7	4.38±0.9	4.39±0.7	>0.066
Scan range (cm)	52.12±1.07	52.54±1.78	53.17±1.81	53.48±3.22	53.71±4.91	53.91±4.03	54.16±3.12	>0.067
E ff dose (mSv)	2.41±0.62	2.46±1.47	2.59±0.75	2.79±1.13	3.19±0.44	3.59±0.49	3.91±0.22	<0.003

Image acquisition and CMV

There was no statistical significance in mean scan time in each contrast range; 0–10 mL: (3.22 ± 1.2 s) compared to 60–70 mL: (4.39 ± 1.3 s), (P > 0.05) [Table 1]. All patients tolerated their assigned contrast material delivery protocol without any related complications.

Quantitative analysis

The mean pulmonary arterial opacification of the main pulmonary circulation was (343.88 ± 73 HU). For the right lung, the mean arterial opacification was: Upper lobe (316.51 ± 23 HU), middle lobe (312.5 ± 39 HU), and lower lobe (315.23 ± 65 HU). For the left lung, the mean arterial opacification was: Upper lobe (318.76 ± 83 HU) and lower lobe (321.91 ± 12 HU) [Table 2]. The mean venous opacification of all pulmonary veins was below the threshold of 182 ± 72 HU [Table 2]. In addition, the opacification of the superior vena cava veins was approximately double that of the mean pulmonary artery opacification. The AVCR ranged from 2.21:1 to 3.83:1 (P < 0.0010), which demonstrated a significant difference between arterial and venous opacification [Table 3].

Table 2. Mean opacification (HU) of arteries and veins at each anatomical segment during CTPA

Data are mean±SD, P <0.05, statistically significant with ANOVA. HU: Hounsfield units, SD: Standard deviation, CTPA: Computed tomography pulmonary angiography

Anatomic level	Anatomical location	Mean opacification with SD
Pulmonary trunk	Mediastinum	362±97
Right main pulmonary artery		337±88
Left main pulmonary artery		323±88
Atrial vein	Mediastinum
Right superior		177±73
Right inferior		154±67
Left superior		182±72
Left inferior		157±61
Superior vena cava		606±257
Pulmonary arteries
Right superior anterior	Right upper lobe	320±87
Right superior posterior		313±83
Right medial	Right middle lobe	311±93
Right lateral		314±86
Right anterior basal	Right lower lobe	306±89
Right posterior basal		325±95
Left apicoposterior	Left upper lobe	314±79
Left inferior lingular		323±86
Left anteromedial basal	Left lower lobe	319±82
Left posterior basal		323±83
Pulmonary veins
Right superior anterior	Right upper lobe	112±79
Right superior posterior		122±78
Right medial	Right middle lobe	95±62
Right lateral		101±60
Right anterior basal	Right lower lobe	92±61
Right posterior basal		96±59
Left apicoposterior	Left upper lobe	141±80
Left inferior lingular		146±77
Left anteromedial basal	Left lower lobe	120±61
Left posterior basal		111±62

Table 3. Mean opacification (HU) profile of artery and vein at each anatomical level and the ratio of the AVCR

Data are mean±standard deviation, P <0.05, statistically significant with ANOVA. HU: Hounsfield units, AVCR: Arteriovenous contrast ratio

Anatomical level	Anatomical location	Artery	Vein	Ratio	P value
Right superior anterior	Right upper lobe	320±87	112±79	2.86	<0.0001
Right superior posterior		313±83	122±78	2.65	<0.0001
Right medial	Right middle lobe	311±93	95±62	3.27	<0.0001
Right lateral		314±86	101±60	3.10	<0.0001
Right anterior basal	Right lower lobe	306±89	92±61	3.33	<0.0001
Right posterior basal		325±95	96±59	3.38	<0.0001
Left apicoposterior	Left upper lobe	314±79	141±80	2.23	0.0002
Left inferior lingular		323±86	146±77	2.21	0.0002
Left anteromedial basal	Left lower lobe	319±82	120±61	2.66	<0.0001
Left posterior basal		323±83	111±62	2.91	<0.0001

Lung volume versus contrast volume in patient-specific contrast formula

When employing the patient-specific formula, an increase in CMV positively correlated with increased total lung volume (r =0.89, P < 0001). As expected, total lung volume increased with increasing mean anteroposterior and lateral lung diameters. Therefore, increased lung volume, anteroposterior, and lateral chest diameters are correlated with increased CMV [Table 4].

Table 4. Mean lung volumes (mL), contrast media (mL), and chest diameters (mm)

Data are mean (±) indicate the standard deviation. CMV: Contrast media volume, RLV: Right lung volume, AP: Anteroposterior

CMV range (mL)	RLV (mL)	Left LV (mL)	Total LV (mL)	Total LV/CM (mL)	Mean AP diameter (mm)	Mean LAT diameter (mm)
0–10 (2)	1482.71±32.52	1367.97±53.42	2849.97±46.12	569.34±31.19	265.37±09.12	185.18±13.02
10–20 (6)	1593.86±47.11	1358.22±81.34	2951.22±62.28	196.18±28.03	277.16±19.87	193.27±68.41
20–30 (14)	1618.13±19.83	1575.92±63.19	3193.92±48.19	127.63±16.18	283.44±16.11	198.22±17.61
30–40 (102)	1690.44±33.69	1745.14±28.12	3435.14±29.73	98.17±11.28	302.21±19.19	208.38±19.76
40–50 (44)	1809.5±59.85	2110.22±31.6	3919.46±32.81	87.04±15.32	306.57±28.45	217.26±28.32
50–60 (28)	2305.5±55.52	1857.50±45.5	4162.10±52.57	69.38±03.12	322.28±16.32	225.18±29.22
60–70 (4)	2403.8±42.16	1798.14±31.9	4201.08±13.22	64.63±02.29	329.10±22.58	231.92±18.47

However, we further stratified CMV groups into tertiles (3 groups) to equally distribute the number of patients across each group, unlike in Table 4. Regression analysis was performed for each CMV group relative to lung volume. By comparing CMV 1 (<32 mL) and 2 (>33–<50 mL) demonstrated significant changes in the right and left lungs (P < 0.006) [Table 5]. Furthermore, when comparing Group 2 (>37–<40 mL) with Group 3 (>41 mL), statistical significance was seen with increasing lung volumes in both rights and left lung (P < 0.001) as well as an increase in effective radiation dose (P < 0.04) [Table 5]. Interestingly, after regression analysis was performed, weight and BMI had no statistically significant association with increased lung volume and CMV.

Table 5. Contrast media volume ranges

(±) Indicate the standard deviation, P <0.05, statistically significant with ANOVA

Variables	All ( n =200)	Contrast media volume range (mL)			P -value
		<32 ( n =60)	33–40 ( n =81)	>41 ( n =59)
Right lung volume	1843.42±9.67	1564.91±38.31	1749.96±43.82	2354.65±98.23	0.007
Left lung volume	1687.59±59.17	1434.38±29.76	1927.68±14.09	1827.82±60.64	0.006
Total lung volume	3530.41±98.36	2998.65±47.23	3677.39±102.44	4181.59±130.05	0.001
Weight	78.91±14.78	78.79±16.87	77.76±14.83	80.25±12.48	0.561
Height	1.71±0.09	1.69±0.09	1.72±0.08	1.72±0.09	0.383
Body mass index	27.07±4.67	27.53±5.20	26.31±4.16	27.37±4.62	0.383
Anteroposterior length	298.11±32.64	275.33±32.17	304.05±33.88	286.69±30.90	0.08
Lateral length	208.48±33.15	192.23±33.15	212.82±34.99	201.55±38.24	0.08
Dose length product	163.90±49.22	178.83±61.93	188.38±40.09	164.44±38.71	0.08
Effective dose	2.31±0.74	1.89±0.93	2.13±0.60	2.60±0.58	0.04

Qualitative analysis

VGC – the scores were individually graded by the two readers (R1 and R2) and were expressed as a graph [Figure 3]. The sensitivity and specificity were then compared by calculating the area under the curve (AUC) differences from each of the ROC curve analysis. Calculating the difference between each reader, the graphs demonstrated an AUC = 0.831, with a 95% confidence interval of 0.71–0.89 (P < 0.02).

Download figure
Enlarge figure

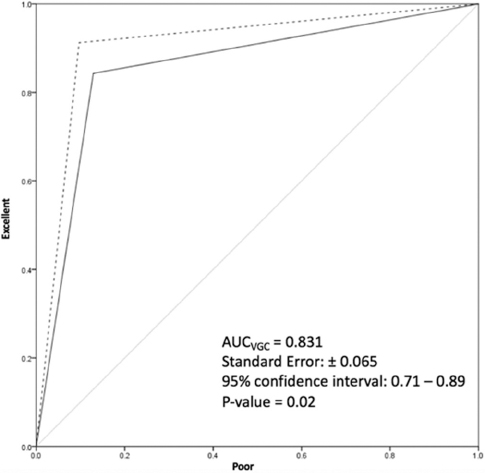

Figure 3. Visual grading characteristic curve

Jackknife free-response ROC – the six-point scale demonstrated a significant difference (P < 0.001) between protocols with mean ROC values demonstrating strong reader confidence between each CMV range (95% CI 0.88–0.99) [Figure 4]. The number of patients diagnosed with PE was 38 (19%). Kappa analysis – CTPA yielded excellent interobserver agreement (k = 0.71) in all ranges. There was a strong positive relationship between mean pulmonary arterial opacification, good image quality, and reader confidence in the patient-specific protocol (r = 0.67, P < 0.001).

Download figure
Enlarge figure

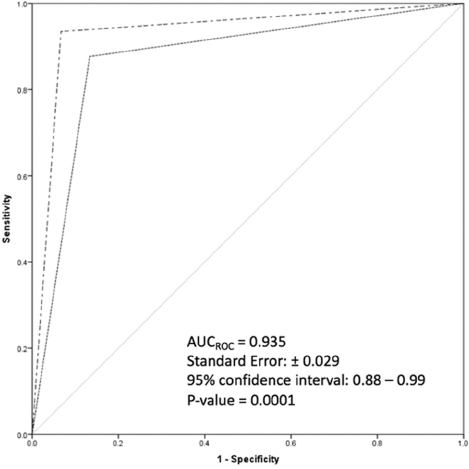

Figure 4. Receiver operating characteristic curve

Discussion

There have been considerable studies carried out to reduce radiation dose through reduction of radiation output, fixed CMV, and reduced contrast media concentrations during CTA.[20-22] In addition, weight-based contrast media protocols have been considerably used to perform consistent optimal image quality during CTPA, but at the cost of larger CMV for considerably larger patients.[23] However, until recently, patient-specific protocols have not been readily employed to significantly reduce contrast media dose during CTPA without compromising image quality.[1,7] Nevertheless, to our knowledge, this is the first study to investigate a possible relationship between CMV and lung volumes, weight and BMI, and how different CMVs could affect confidence in emboli detection and image quality when employing a patient-specific formula.

The results of this study have demonstrated a significant correlation between CMV and lung organ volumes. When this formula was applied to patients, the CMV increased with increased lung volume which might be important to maintain a good visualization of the pulmonary vasculature. Furthermore, there was no significant change in CMV with gender and age; however, CMV initially increased with increasing body weight and BMI when patients were unequally grouped into 7 protocol ranges. However, when grouped into three ranges with the same patient number, body weight and BMI did not correlate with CMV which is in contrast with previous findings.[24-28] The reduced CMV did not affect pulmonary artery opacification and the sensitivity and specificity of pulmonary emboli detection as those in previously reported papers.[29-31]

There still remain controversies surrounding the effect of CMV and increased radiation dose due to the photoelectric effect. Recent studies demonstrated that the addition of contrast media during CT increased double DNA strand breaks which are attributed to increased radiation dose.[32,33] In addition, future studies published should consider the effect of iodinated contrast material on the organ doses administered to patients undergoing CT, as it is important in estimating radiation dose.[34,35] In our study, we demonstrated that increased lung volume was correlated with increased CMV as well as radiation dose, but when compared to other studies, our CMV range was from 10 to 76 mLs and other studies from 40 to 120 mLs.[36-40] Finally, a strong correlation between the increased lung and contrast volumes demonstrated no correlation with BMI. Therefore, the radiation dose increase can be attributed to the increased volume in the pulmonary circulation at the time of the CTA and not patient weight.

There were shortcomings in the current study. First, whilst every attempt was made to have uniform inspiration between patient to patient, the exact air volume entering the lungs could not be controlled and thus potentially the increase in blood volume could not be determined. Second, we did not measure the effect between weight-based contrast media protocols and the patient-specific contrast media protocols in pulmonary CTA. Finally, the main limitation of this study is the fact that it is a retrospective one. A randomized clinical trial will be needed to confirm our results.

Conclusion

High CMVs present a health hazard that could be avoided if patient-specific CMVs are administered. The patient-specific CMVs should preserve image quality, thus maintaining the diagnostic relevance of their usage. A correlation between CMV and lung volume might be important to maintain a good visualization of the pulmonary vasculature. This study showed that administering a patient-tailored CMV can preserve image quality. Moreover, increased CMV is significantly correlated to increased patient lung volume when employing a patient-specific contrast formula. The main limitations of this study are the fact that it is a retrospective study. A randomized clinical trial is needed to confirm our results.

Ethical approval

All procedures performed in studies involving human partcipants were in accordance with the ethical standards of the American University of Beirut’s IRB and with the 1964 Helsinki declaraton and its later amendments or comparable ethical standards. Informed consent was waived since all studies were clinically indicated; patent data contained no identfable informaton and was evaluated retrospectvely.
